Mixed Technology PCB Assembly Services
Seamless mixed-technology assemblies combining SMT and through-hole components under one controlled workflow. FastTurn delivers reliable mixed PCB assembly with disciplined process control, integrated testing, and turnkey support for mission-critical applications.
- All uploads are secure and confidential.
Precision Mixed Technology PCB Assembly Services
Many modern electronics require both compact, high-density surface-mount components and mechanically robust through-hole parts such as connectors, terminals, transformers, and power devices. Mixed technology PCB assembly (SMT + THT) delivers the best of both worlds—but it also introduces manufacturing complexity that must be managed carefully to avoid defects, rework, and schedule delays.
FastTurn PCB provides precision mixed technology PCB assembly services for high-reliability products in industrial, medical, communications, energy, aerospace, and other demanding markets. Our assembly workflows are designed to manage the sequencing challenges of mixed builds—including solder process compatibility, thermal exposure control, and protection of sensitive SMT devices during through-hole soldering operations.
We integrate SMT placement and reflow, manual through-hole insertion, and wave or selective soldering (as required) within a unified process flow supported by DFM review, controlled inspections, and program-appropriate testing. This approach enables consistent results for high-mix prototypes, low-volume builds, and small-to-medium production runs, while preserving traceability and repeatability as your program scales.
What Is Mixed Technology PCB Assembly?
Mixed technology PCB assembly combines surface-mount technology (SMT) and through-hole technology (THT) on the same printed circuit board. SMT enables compact layouts and high component density, while THT provides strong mechanical anchoring for components exposed to vibration, stress, high current, or frequent mating cycles (e.g., connectors).
Mixed assembly typically includes:
- SMT placement and reflow soldering
- Through-hole component insertion
- Selective soldering or wave soldering for THT parts
- Inspection and test to validate workmanship and function
- Mixed technology remains essential for products that must balance mechanical durability with compact electronic design.
Our Mixed Technology PCB Assembly Capabilities
FastTurn PCB offers comprehensive mixed-technology PCBA capabilities designed to support reliability, repeatability, and smooth scale-up.
- Assembly Methods
SMT Assembly (placement + reflow)
- Manual Through-Hole Assembly for connectors and mechanically demanding parts
- Wave Soldering for efficient THT soldering on suitable designs
- Selective Soldering to protect nearby SMT components and improve precision
- Rework / Touch-Up as required for complex or dense mixed builds
- Mixed-Technology Process Control
- Optimized soldering sequence for SMT + THT compatibility
- Thermal exposure control to protect temperature-sensitive components
- Fixturing and masking strategies for selective soldering where required
- Controlled handling for connectors and high-mass components
- Volume Range
- Prototypes and NPI builds
- High-mix, low-volume programs
- Small-to-medium production runs with repeatability support
- DFM Review & Manufacturing Alignment
Each mixed assembly project begins with engineering checks for:
- Component clearance and access for THT insertion/soldering
- Keep-out zones around SMT devices near soldering areas
- Hole size, lead length, solderability, and spacing constraints
- Solder process selection (wave vs selective)
- Test access and inspection coverage planning
- Inspection & QA
- Visual inspection and workmanship verification
- AOI support (where applicable)
- Electrical testing and functional verification as required
Advanced Testing for Maximum Reliability
FastTurn PCB prioritizes reliability and performance across every mixed-technology PCB assembly project. Our integrated PCB assembly testing services are designed to detect potential issues early and verify functional integrity before shipment.
Testing is embedded within our SMT, through-hole, and mixed-technology PCBA workflows, supporting prototypes and low-to-medium volume production. By applying appropriate test methods based on design complexity and end-use requirements, we help reduce field failures and improve long-term product stability.
Testing Capabilities
- Flying Probe Testing
Fixtureless electrical testing for prototype and low-volume PCB assembly, identifying opens, shorts, and connectivity issues.
- In-Circuit Testing (ICT)
Verifies component placement, solder joints, and basic electrical performance in mixed-technology PCBA.
- Functional Testing
Confirms system-level operation by simulating real-world working conditions.
- Boundary Scan Testing
Non-intrusive diagnostics for high-density and complex PCB assemblies where physical access is limited.
- Burn-In Testing
Applies controlled electrical and thermal stress to identify early failures and enhance long-term reliability.
- Ionic Contamination Testing
Evaluates board cleanliness to reduce risks of corrosion and electrical leakage over time.
- Component Programming
In-house IC and embedded device programming as part of turnkey PCB assembly services.
- Custom Test Fixture and Software Development
Project-specific test solutions to support efficient validation and smoother transition from prototype to production.
Quality & Certifications
FastTurn PCB maintains strict quality, safety, and compliance standards across all through-hole PCB assembly projects. Our quality system is supported by in-process inspections, structured testing, and internationally recognized certifications to ensure consistent reliability and performance.
Quality control is embedded throughout our PCB assembly and turnkey PCBA workflows, from incoming materials to final shipment.
Quality at Every Step
Each PCB assembly is subject to defined inspections, functional testing, and documented process controls at every production stage to ensure accuracy, consistency, and repeatability.
- Comprehensive Quality Control Systems
Standardized inspection procedures and real-time process monitoring across SMT, through-hole, and mixed-technology PCB assembly.
- Advanced Testing Platforms
Electrical and functional testing including flying probe, ICT, boundary scan, and functional testing for broad fault coverage.
- IPC-A-610 & J-STD-001 Trained Technicians
Assembly and inspection performed to recognized PCB assembly workmanship standards.
- Traceability & Documentation
End-to-end traceability and controlled documentation to support transparency and accountability.
- Continuous Improvement Practices
Ongoing process optimization through internal audits, training, and lean manufacturing methods.
Certifications
FastTurn PCB holds internationally recognized certifications that demonstrate our commitment to quality management and high-reliability PCB assembly across diverse industries.
- ISO 9001:2015 – Quality Management Systems
- ISO 13485:2016 – Medical Device Manufacturing
- IPC-A-610 & J-STD-001 – Assembly Workmanship Standards
- RoHS / Lead-Free Compliance – Environmental Regulations
- ANSI/ESD S20.20 – ESD Protection
- SMTA Membership – Industry Standards Participation

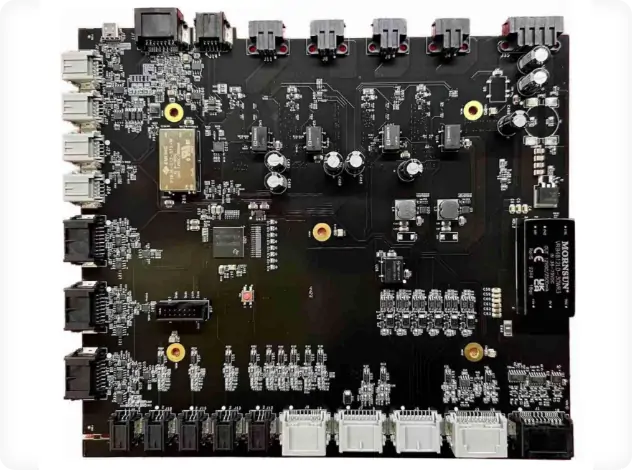

Our portfolio
Our portfolio includes mixed-technology PCB assemblies for demanding applications—combining dense SMT circuitry with mechanically robust through-hole interfaces. Each build reflects our focus on process sequencing, solder quality consistency, and reliable performance.
Prototyping to Production
Our Agile Manufacturing Model Supports
-
NPI (New Product Introduction) Programs
Structured support for early-stage designs and production ramp-up. -
Design Validation with Rapid Feedback
Early DFM review and assembly feedback to improve manufacturability. -
Low- and High-Mix Production Volumes
Mixed-technology assembly adapted to varying complexity and revision cadence. -
Accelerated Time-to-Market
Streamlined workflows that shorten the transition from prototype to production. -
Manufacturability Optimization During Design
Continuous refinement to improve yield, reliability, and production stability.
Industries & Applications We Support
We serve a diverse range of industries with precision-built PCB assembly solutions tailored to meet their unique reliability and performance challenges.
Industries & Applications We Support
Mixed-technology PCB assembly combines SMT and through-hole processes to support designs that require both high component density and robust mechanical or power interfaces. Our capabilities support SMT, through-hole, and integrated mixed-technology builds for demanding environments. Through controlled processes and integrated testing, we deliver mixed-technology PCB assembly solutions aligned with application-specific technical requirements.
Industries & Applications
-
Aerospace & Defense
High-reliability PCB assemblies for mission-critical systems. -
Medical & Life Sciences
PCB assembly for diagnostic and medical electronics requiring strict quality control and traceability. -
Industrial & Automation
PCB assembly for control and automation systems exposed to vibration and heat. -
Communications
PCB assemblies supporting signal integrity and dependable performance. -
Energy & Power Systems
PCB assembly for power conversion and energy management applications. -
Emerging Technologies
Flexible PCB assembly support from rapid prototyping to scalable production.
Why FastTurn PCB?
FastTurn PCB delivers high-performance PCB assembly solutions built on precision, reliability, and scalability. With integrated capabilities and engineering-driven execution, we support the full product lifecycle from prototype to production.
Our portfolio
Our production floors are purpose-built for mixed-technology PCB assembly, integrating SMT and through-hole processes with selective and wave soldering lines, reflow capability, component preparation equipment, and ESD-safe manual assembly stations. Supported by IPC-certified technicians and RoHS-compliant, controlled processes, we ensure consistent quality and reliable execution across every build.
FAQ
Mixed technology assembly combines SMT components and through-hole components on the same PCB—enabling compact designs while keeping strong mechanical interfaces for connectors, terminals, and high-power parts.
If your design includes connectors, high-current terminals, transformers/inductors, or parts exposed to vibration or mechanical stress, mixed technology is often the best approach.
Both options are available. The best method depends on board design, component density, and proximity of SMT devices to soldering areas.
Gerber files, BOM, pick-and-place file, assembly drawings/notes, and required quantities. If you have test requirements, include them.
We support electrical testing, ICT, functional test, boundary scan, and additional reliability screening options as required by your program.
Yes. Our mixed assembly workflows support prototype-to-production continuity with stable process control, documentation, and repeatable execution.
