| Blind/Buried Hole | (1-2,2-3,3-8,8-9,9-10) |
| Material | FR4 Hi-Tg 170 |
| Thicknes | 1.6mm +/-10% |
| Panel size | 86 x 43mm（1-up） |
| Width/space | Partly 3/3mil line |
| Surface Treatment
Standard Hole Wall Copper Thickness |
Slective 30μ" Hard Gold + ENIG
IPC3 25 μm |
| Blind/Buried Hole | (1-2,2-3,3-8,8-9,9-10) |
| Material | FR4 Hi-Tg 170 |
| Thicknes | 1.6mm +/-10% |
| Panel size | 86 x 43mm（1-up） |
| Width/space | Partly 3/3mil line |
| Surface Treatment
Standard Hole Wall Copper Thickness |
Slective 30μ" Hard Gold + ENIG
IPC3 25 μm |

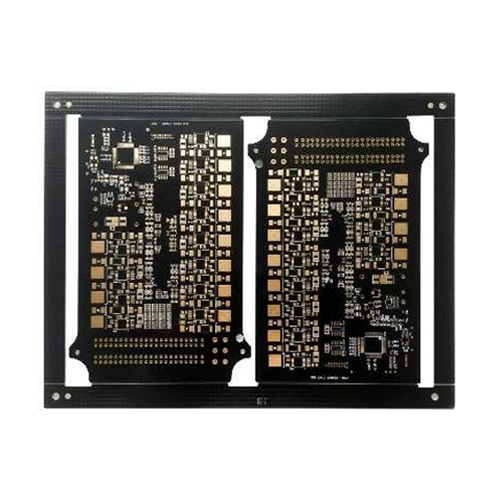

This 10-layer HDI PCB, manufactured by Fastturn PCBs, showcases a high-performance multilayer design with precise microvia structures and premium surface treatments. Engineered for space-constrained and high-reliability applications, this board meets IPC Class 3 standards and offers excellent electrical performance.
Key Specifications:
Layers: 10
Blind/Buried Vias: (1-2, 2-3, 3-8, 8-9, 9-10)
Material: FR4, High-Tg 170
Board Thickness: 1.6 mm ±10%
Panel Size: 86 x 43 mm (1-up)
Line Width/Spacing: Partly 3/3 mil
Surface Finish: Selective 30 μ" Hard Gold + ENIG
Hole Wall Copper Thickness: 25 μm
Standard: IPC Class 3
The design leverages advanced via technology and high-density interconnects to ensure optimal signal integrity and performance for mission-critical systems.
To fabricate this board, the following data and design specifications are required:
Complete Gerber Files (RS-274X format preferred)
Drill Files with clearly marked blind/buried via layers
Stack-Up Details, especially for HDI via planning
Material Selection Confirmation (FR4 Tg170 or equivalent)
Surface Finish Specification (ENIG + Hard Gold)
Impedance Control Requirements (if applicable)
Assembly Constraints (if selective plating areas are tied to assembly needs)
Quantity and Delivery Timeline
Note: Due to the complexity of HDI structures, DFM (Design for Manufacturability) checks are highly recommended before production.
Q1: What is the purpose of using both ENIG and hard gold selectively?
A: Selective hard gold plating is used in high-wear contact areas like edge connectors, while ENIG is used elsewhere to ensure solderability and cost-efficiency.
Q2: What are blind and buried vias, and why are they used here?
A: Blind vias connect outer layers to inner layers, and buried vias connect only internal layers. They reduce layer-to-layer interconnection paths, enabling higher density without increasing board size.
Q3: Can you support impedance control for this PCB?
A: Yes. Impedance control can be implemented based on provided stack-up and trace width/spacing data. Please submit impedance requirements with your design.
Q4: What applications is this HDI PCB best suited for?
A: This PCB is ideal for use in mobile devices, RF modules, high-speed computing, medical instruments, and aerospace-grade electronics where compact form factor and signal integrity are critical.
Q5: What is the minimum order quantity (MOQ)?
A: MOQ depends on specific production needs. We offer low-volume prototyping and high-volume production. Please contact us for a tailored quote.
